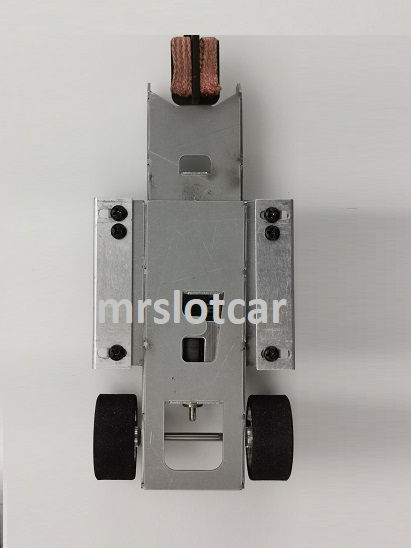

MT-V36DC Vintage 2 part chassis for 36D motors

MT-V36DC Vintage 2 part chassis for 36D motors


The Vintage/Stocker chassis will suit 1/24 and 1/25 scale resin or model kit bodies.

It's an adjustable 2 part steel chassis for current and Vintage/Stocker cars running a 36D motor.

The shortest wheelbase is 101mm. The longest possible is 139mm.

It is possible to shorten the chassis by another 8mm or lengthen the chassis by 8mm.

Updated chassis package version 4 (March 2024). It's ready to assemble including chassis screws.

The front end half nests into the rear end section, and then slides back and forth.

So, it's adjustable overall length will suit various model cars.

There are multiple 1/8" front axle hole positions.

The motor has two support posts, front and rear, to secure the 36D motor in position.

The rear axle holes will suit 1/4" or 6mm oilites (bushings).

The minimum tyre diameter at the rear is 24mm. This allows for a min. 1.5mm clearance between the chassis and the track surface.
